Port based Authentication for Access Point

Access Point Configuration

capwap ap dot1x username <username> password <password>

By doing so capwap knows its dot1x credentials for authentication. Only after successful authentication capwap will initiate the discovery and joining process meaning that if there is an AP and it does not know the dot1x credentials, then it is not possible for that AP to send any capwap messages which results in preventing AP to join WLC.

Switch Configuration

Interface Configuration

switchport access vlan <vlan>

switchport mode access

authentication port-control auto

dot1x pae authenticator

spanning-tree portfast

Globlal Configuration

dot1x system−auth−control

aaa new−model

aaa authentication dot1x default group radius

radius-server host <IP Address> key <Password>

WLC Configuration

Here you need to provide 802.1x supplicant credentials for an AP to get the credentials to do the authentication.

All AP which is available in WLC will get to know the dot1x credentials so that if we configure the port as dot1x authenticator, AP would not have any issues in doing authentication.

The configuration here is globally and is applied to all the AP.

We can over-ride the above global configuration by assigning credentials in AP itself.

Once we add the credentials either globally or directly, it will be pushed immediately inside AP.

When we apply the commands in switchport, AP needs to now do the authentication then only it will rejoin back to WLC, meaning that AP will lose the capwap connectivity with WLC. And will rejoin the WLC.

ISE Configuration

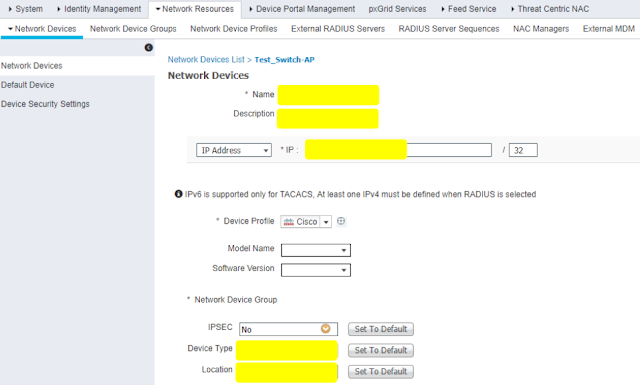

Adding Switch

Enable Radius (Define Shared Secret)

Create dot1x credentials (username and password) in ISE

Create Identity Group and define the credentials created in previous step

Create Policy Set

Keep Default Policy and use All_User_ID_Stores

Create Authorization Policy to permit access if the condition is matched
